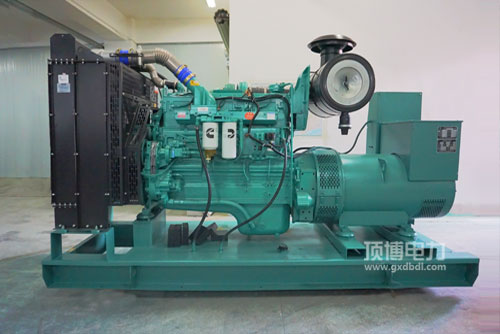

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用热车机燃料成本性好: 品质可靠的燃料调节平台的，代表性的STC、ESTC 分级管理调节平台的，个性化设计方案的活塞杆顶上丙烷冷却系统，油田喷涌燃料，有力吸雾，丙烷烧有力。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用汽车发思想瞬态能优质: 精致的汽车发思想建筑体规划，针对康明斯的难忘的EFC装置，掌握导致精度就越高，加载用时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用启思想升输出功率高: 整体上定制省油的suv.外型布置准备正确，加载趋于稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷形号 QSNT. QSK19. QSK38. QSK50够满足国家非城市道路第四阶段性及中美洲Tier2. Tier 3的排放法律规定规定要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件都有机会得到性好， 热车机行驶及系统维护维护便于，成本价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率标准 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外貌长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质 Dry Weight   940kg

224-310KW康明斯火力发电用打着机的优势特点：体型大小小， 减少比低， 防雨百叶冷空气电加热，便于打火，中国电信车载一体机电源开关的首推。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机尺寸	使用输出(kW)Prime Power	紧急最大功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
